TV1500-ELITE-220

The TWEEZER-VAC ELITE was developed as a result of customer concerns about firmly grasping critical components and not dropping them due to  a vacuum leak.  This vacuum tweezer uses an integrated ten segment bar-graph-display visibly shows the vacuum level present during operation.

The bar graph will show minimum vacuum pressure until a part is grasped and then when a part is grasped the bar graph displays the vacuum level presented to the part being handled.  Additionally, the vacuum port integrates a user replaceable inlet filter that protects operation of the tool from dust particles.  This Vacuum Tweezer is available in various kits depending on your handling application.  Kits are available in 110 or 220 volt operation.

This ESD safe Kit Includes:

  • 5 feet of coiled vacuum hose
  • A set of nine vacuum tips.
  • Five vacuum tip holders on top of tool.
  • A vacuum pick-up handle.
  • Bar graph power-on and vacuum-level indicator.
  • Rubber no-skid feet.
  • ESD ground connection is by three wire power cord.
  • Produces vacuum of up to ten inches of mercury.

Optional: Foot switch for component release


TV1000 / 220

A general purpose vacuum handling tool, ESD safe. This compact unit will handle a wide variety of parts in all industries. TV1000/220 is a long-life diaphragm vacuum pump which generates up to 10 inches of mercury with an open air flow of 2.3 lpm.

The TV-1000 comes complete with the following features:

  • 5 Feet of coiled vacuum hose VCH-1/16-5
  • A set of nine vacuum tips, VCS-9-B
  • A vacuum pick-up handle VVP200
  • Produces vacuum for over 10 inches of mercury
  • With optional vacuum pen holder

AV-6000-220 Vacuum Tweezers

This vacuum-tweezer allows the operator to adjust the vacuum level from just below atmospheric pressure to up to eight inches of mercury depending on the fragility of the part being handled. An integrated ten segment bar-graph-display visibly shows the vacuum level present during handling operations. The bar graph will show minmum vacuum pressure until a part is grasped and then the bar graph displays the vacuum level presented to the part being handled. Additionally, the vacuum port integrates a user replaceable inlet filter that protects operation of the tool from dust particles. This Vacuum Tweezer is available in various kits depending on your handling application.

This ESD safe Kit includes:

  • 5 feet of coiled vacuum hose.
  • Bar graph power-on and vacuum-level indicator.
  • Adjustment knob for vacuum level.
  • Rubber no-skid feet.
  • ESD ground connection is by three wire power cord.
  • Produces vacuum of up to ten inches of mercury.
  • Wafer wand and wafer tip (various sizes available in PEEK

AV-6000-220 Vacuum Tweezers

AV-6000

Vacuum

Up to 8 inches of Mercury

AV-6000

Dimensions (L x H x W)

8’’ (203mm) x 3’’ (76mm) x 3.5’’ (89mm)

AV-6000

Power requirements AV-6000-220

220 VOLT S A.C/50 Hertz/4 Watts






ADJUST-A-VAC AV-5000-MW8-220

The ADJUST-A-VAC was developed as a result of customer concerns about manual handling of very thin/delicate substrates, wafers, MEMS devices and other very fragile components. This vacuum-tweezer allows the operator to adjust the vacuum level from just below atmospheric pressure to up to eight inches of mercury depending on the fragility of the part being handled. An integrated ten segment bar-graph-display visibly shows the vacuum level present during handling operations. The bar graph will show minmum vacuum pressure until a part is grasped and then the bar graph displays the vacuum level presented to the part being handled. Additionally, the vacuum port integrates a user replaceable inlet filter that protects operation of the tool from dust particles. This Vacuum Tweezer is available in various kits depending on your handling application. Kits are available in 110 or 220 volt operation.

This ESD safe Kit Includes:

  • 5 feet of coiled vacuum hose.
  • Bar graph power-on and vacuum-level indicator.
  • Adjustment knob for vacuum level.
  • Rubber no-skid feet.
  • ESD ground connection is by three wire power cord.
  • Produces vacuum of up to ten inches of mercury.
  • Wafer wand and wafer tip (various sizes available in PEEK)

ADJUST-A-VAC AV-5000-MW8-220

MODEL

SPECIFICATIONS

OAL

AV-5000

Vacuum

Up to 8 inches of Mercury

AV-5000

Dimensions (Length x Height x Width)

8" (203mm) x 3" (76mm) x 3.5" (89mm)

AV-5000

Power requirements AV-5000-110

110 VOLTS A.C. / 50/60 Hertz / 4 Watts

AV-5000

Power requirements AV-5000-220

220 VOLTS A.C. / 50 Hertz / 4 Watts


PAC-VAC™ Transportabel, ESD sicher

1

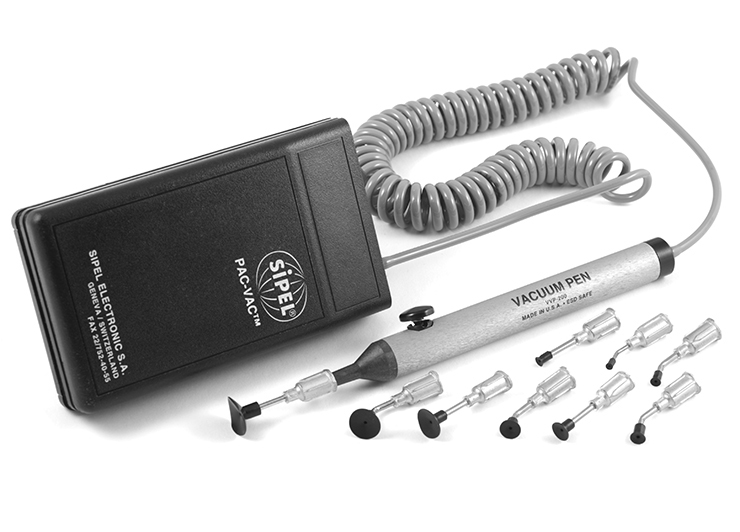

The PAC-VAC is battery operated and self-contained
Comes complete with following features:

  • A belt/pocket clip on the housing
  • 4 feet of straight vacuum hose, #VSH-1/16-4
  • 4 feet of coiled vacuum hose, #VCH-1/16-4
  • A set of seven vacuum tips, #VCS-7-B
  • A vacuum pick-up handle, #V3020-RF-1/16
  • 9 volts disposable alkaline battery
  • Lightweight - only 156 grams
  • Runs up to eight hours continuously on one 9 volts alkaline battery
  • Produces vacuum of over ten inches of mercury

V3200


VFS-1

1

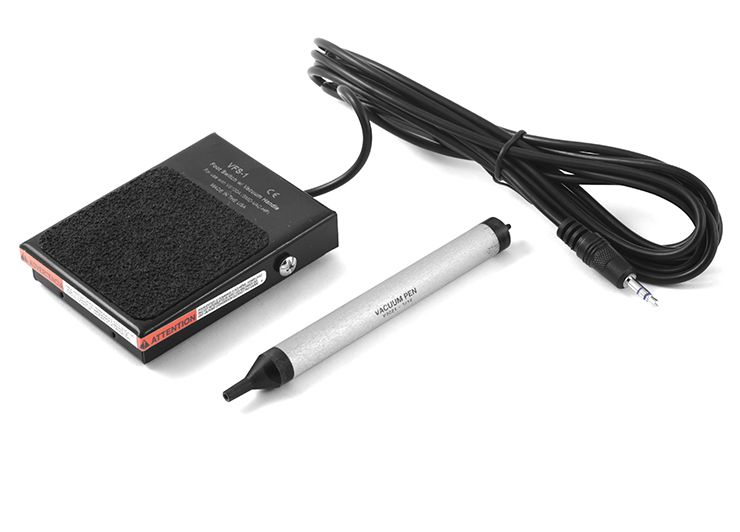

Foot Switch with vacuum pen V3021


PORTA-WAND® BATTERY OPERATED WAFER HANDLING TOOL

1

Comes with a fixed internal 9.6V NiMH rechargeable battery
In-stand charger (P/N VPW6000-CHRG)
Available in 110V or 220V
Easily lifts over 500 grams

VPW6000AR-MW4 Handling up to 4" (100 mm) wafers
VPW6000AR-MW6
Handling up to 6" (150 mm) wafers
VPW6000AR-MW8
Handling up to 8" (200 mm) wafers

Porta Wand® only
VPW6000AR-X without wafer tip, without charge


PORTA-WAND® SERIES 3 BATTERY OPERATED WAFER HANDLING TOOL

Same as VPW6000B
With vacuum level indicator

VPW6300AR-MW4
Handling up to 4" (100 mm) wafers
VPW6300AR-MW6
Handling up to 6" (150 mm) wafers
VPW6300AR-MW8
Handling up to 8" (200 mm) wafers

VPW6300AR-VWT5R with wafer tip VWT5R
Handles up to 12" (300 mm) wafers

Porta Wand® series 3 only
VPW6300AR-X without wafer tip, without charger


CHARGER STAND

VPW6000-CHRG/110 with 110V transformer included
VPW6000-CHRG/220
with 220V transformer included
VPW6000-CHRG-XT
without transformer
